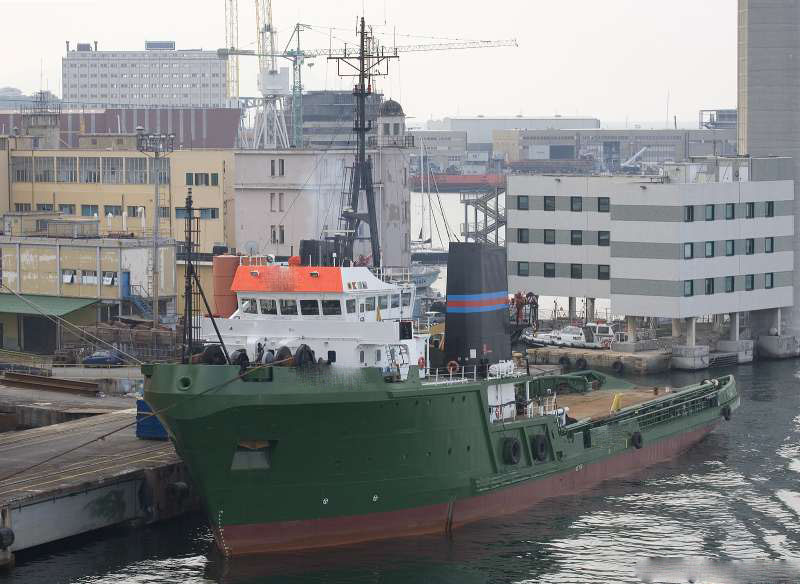

Type: TUG-SUPPLY VESSEL FIRE FIGHTING SHIP AHTS
Year of built: 1982
Place of built: UKI
Length: 69.3 Meters
Beam: 15.5 Meters
Draft: 6.36 Meters
DWT: 2057 T
Gross Tonnage: 1.969 TONS
Net Tonnage: 590 Tons
Speed: 15 Knots
Engine: (B& W Alpha) 4 x 3.180 BHP
Bow Thruster: - 1 x 500 BHP- 1x 650 BHP
Stern Thruster : 1 x 500 BHP
Propellers : 2 x CPP
Classification |
RINA: C - TUG-SUPPLY VESSEL-FIRE FIGHTING SHIP II-
OIL RECOVERY SHIP- AUT UMS-ICE CLASS IC
UNRESTRICTED NAVIGATION NOBLE DENTON APPROVED |
Navigation |
GMDSS(area A1,A2,A3): MARCONI
VHF (F): SAILOR RT2048
VHF (A): SAILOR RT144C
RADAR (2):
- Decca Bridgemaster 10cm
- Decca Bridgemaster 3cm
GPS: FURUNO GP50
ECHOSOUNDER: Kelvin Hughes MS45
GYROCOMPASS: SG Brown MK 10 |
Towing and Anchor Handling |
Bollard Pull: 147,3 MT
Three drum waterfall type winch of Hydraulic Brattvaag manufacture
Towing Drum:
260 T cap with brake holding power of 400 T
1 X 1.150 m, 70 mm dia
Towing Wire
1 x 1.100 m, 76 mm dia
Spare Wire
1 x 1.150 m, 70 mm dia
Anchor Handling Drums
260 T cap each with brake holding power of 400 T
2 x 1.000 m, 56 mm dia
Spare Wire Drum
1 x 1.150 m, 70 mm dia
2 x 76 mm Gypsies
2 x Hydraulically operated Towing Pins
2 x Karm Forks
Stern Roller 3,66 long 2,2 dia.
4 x Chain Lockers total Capacity 270 m³Doppler Log: Raytheon DSL 350
Autopilot: Decca 41E 49
Radiotel: SAILOR RG2100
Watch Rec: DEMEC RS8000
Aeronautical:
- Marconi Warden 4
- Marconi KingKY195B |
Accomodation |
12 x 1 Man
1 x 2 Man
2 x 4 Man |
|
Firefighting Equipment |
2 x Weir centrifugal pumps, capacity 3.600m³/h against 180 mhd
4 x Kerr monitors, capacity 30.000 l/min
1 x Weir centrifugal pump spray system, 10 l/min/m³ through 140 nozzles |
Location: Europe
Price: On Application.
 |
